Teranex Mini - IP Video 12G

BLACKMAGIC DESIGNSKU: CONVNTRM/OB/IPV

Price:
Sale price$785.00 CAD

Description

SKU# CONVNTRM/OB/IPV



Key Features
  • Advanced High-Data Rate Signal Converter
  • TICO Encoder / Decoder
  • Supports up to 4K DCI 4096x2160p Signals
  • Two Independent 12G-SDI 10-Bit Outputs
  • Gigabit Ethernet for up to 1080p60
  • Optional 10G Optical Ethernet Support
  • Supports Optional LCD Smart Front Panel
  • Intelligent Thermal Heat Dissipation
  • Manage Numerous Units from a Mac or PC

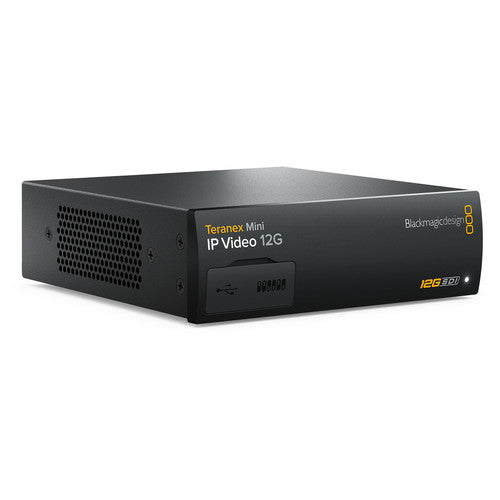

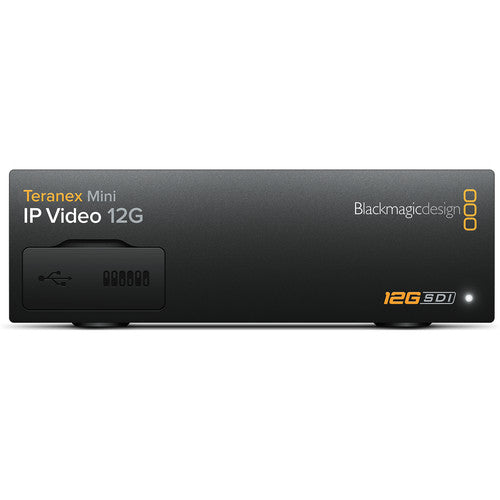

Supporting up to 12G-SDI data rates, the Teranex Mini IP Video 12G from Blackmagic Design is a 12G-SDI/Ethernet encoder/decoder that supports TICO encoding for high-quaity video over Ethernet transmission. The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. One unit is required at each end—multiple units can be used on the same network—controlled by a Mac or Windows computer using the included Blackmagic Video Hub software.

The unit supports up to 1080p60 over a Gigabit Ethernet LAN with higher data rates supported by using an optional 10G optical Ethernet connector. The Mini IP Video 12G has a single 12G-SDI input and two 12G-SDI outputs in addition to the Gigabit Ethernet connector and a slot for an optional 10G SFP. An optional Smart Front Panel with a built-in LCD display provides local setup and control and replaces the standard panel with DIP switch setup that comes with the unit. Up to three units can be easily installed in an optional 1 RU 19" rack tray, and it features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
